Fully automatic high-speed metal mesh gantry welding machine - 80 times per minute. Mesh gantry welding machine.

Fully automatic high-speed metal mesh gantry welding machine - 80 times per minute. Mesh gantry welding machine.
Fully automatic high-speed metal mesh gantry welding machine - 80 times per minute. Mesh gantry welding machine. Fully automatic high-speed metal mesh gantry welding machine - 80 times per minute. Mesh gantry welding machine. Fully automatic high-speed metal mesh gantry welding machine - 80 times per minute. Mesh gantry welding machine. Fully automatic high-speed metal mesh gantry welding machine - 80 times per minute. Mesh gantry welding machine. Fully automatic high-speed metal mesh gantry welding machine - 80 times per minute. Mesh gantry welding machine.

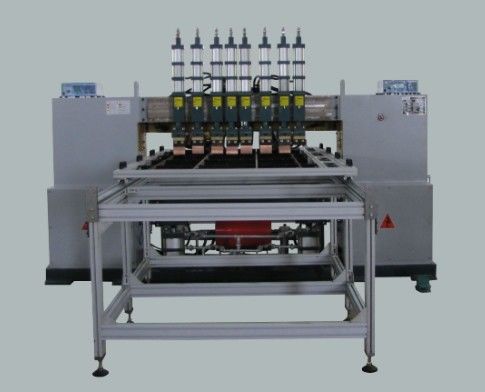

Grande immagine :  Fully automatic high-speed metal mesh gantry welding machine - 80 times per minute. Mesh gantry welding machine.

Dettagli:
Luogo di origine: Cina
Marca: TRINTFAR
Certificazione: CE
Numero di modello: DNW-1000
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1
Prezzo: USD 10000-30000 Set
Imballaggi particolari: scatola di legno
Tempi di consegna: Entro 90 giorni del pagamento finale
Termini di pagamento: L/C, D/A, D/P, D/P, T/T
Capacità di alimentazione: 500 all'anno

Fully automatic high-speed metal mesh gantry welding machine - 80 times per minute. Mesh gantry welding machine.

descrizione
Nome del prodotto: Saldatrice del pannello della rete metallica della saldatrice ad alta velocità completamente automat Tipo di macchina:: Saldatura in rete metallica
Servizio post-vendita fornito: Supporto tecnico video Standard: CE/CCC/ISO
Peso (kg):: 500 kg Garanzia: 1 anno
Uso:: Saldatura Capacità nominale: 60 KVA

Full Automatic High Speed Welding Machine Wire Mesh Panel Welding Machine


This machine is improved by our company according to the needs of customers.the machine has added an intelligent roll mesh system on the basis of the original one,which can adjust the roll mesh speed according to the welding speed of the machine, so as to make the mesh roll even and beautiful.after the mesh roll is bundled, the system will automatically unload themesh roll, saving labor.





1 The mesh size is directly set on the touch screen, which is convenient and simple.

2 Vibration device is added to the cross wire feeding system to prevent wire winding.
3 The line wire automatic wire feeding and the cross wire are pre-straightening and cutting.
4 Cross wire adjustment on screen, line wire adjustment need move the welding electrode.
5 The mesh roll length can be set by the control panel.
6 We can easily adjust the welding current when we need to weld different wire diameters.
7 We can set the output and stop the machine automatically after the mesh production finished.
8 The finished product roll mesh is smooth and the error of opposite angle line is small.




Specification
Machine Specification
Model
DEW-1000
DNW-2000
DNW-3000
Mesh width
Max.2000 mm
Max.2500 mm
Max.3000 mm
Mesh hole size
100 mm
150 mm
200 mm
300 mm
100 mm
150 mm
200 mm
300 mm
100 mm
150 mm
200 mm
300 mm
Wire diameter
3.0-5.0 mm
3.0-5.0 mm
3.0-5.0 mm
Welding speed
40-80 Times/min
40-80 Times/min
40-80 Times/min
Transformer
125KVA*3
125KVA*4
125KVA*4
125KVA*5
125KVA*5
125KVA*6
Dimensions
8.5 X 2.5 X 1.65 m
9.5 X 3.0 X 1.65 m
12 X 3.5 X 1.65 m
Weight
5500 KG
6500 KG
7500 KG
Note: we can produce the machines according to your requirements.

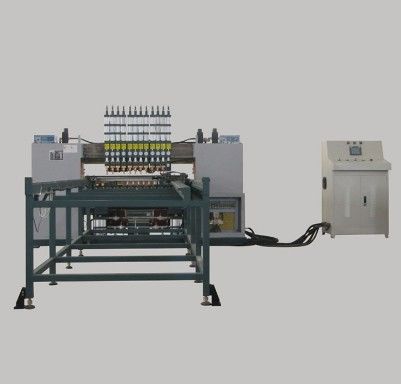

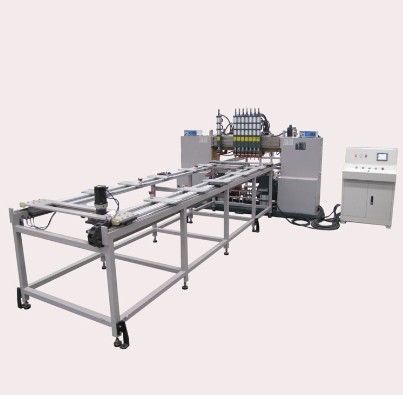

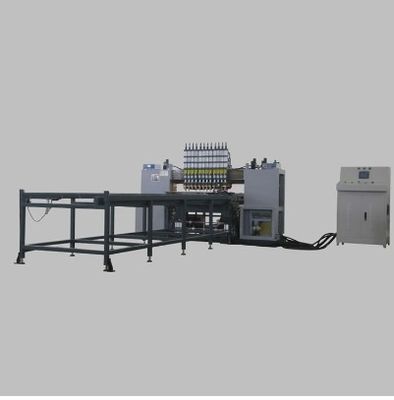

Fully automatic high-speed metal mesh gantry welding machine - 80 times per minute. Mesh gantry welding machine. 0
